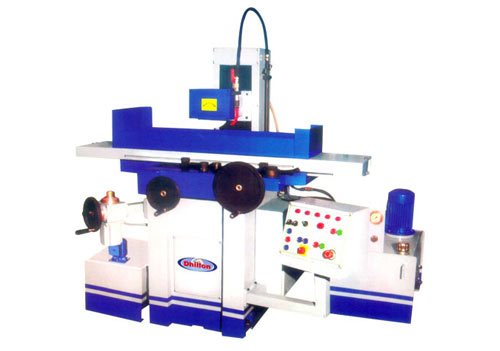

Workshop M/c's / High Precision Surface Grinders

Specifications

Products Range

-->

DESCRIPTION	MODEL	ISG-820 A, 1A ,2A, 34 ED/HD	ISG-1024 A, 1A ,2A, 3A ED/HD	ISG-1224 A, 1A, 2A, 3A ED/HD

Table Size		200x500mm (8"x20")	250x600mm (10"x24")	30x600mm (12"x24")
Max. Grinding Length	Longitudinal	525mm (21")	625mm (25")	625 mm (25")
Max. Grinding Width	Crosswise	212 mm (8½")	262mm (10½)	312mm (12½)
Max. Distance From Table Surface Magnetic Chuck Size	400mm(16")			450mm (18")
Standard Magnetic Chuck Size		200x450mm (8"x18")	250x500mm (10"x20")	300x600mm (12"x24")
	Hand wheel per rev.	100mm (16")
	Table speed elect.autofeed
Longitudinal Movement of Table	Max. travel elect.autofeed	525mm (21")	625mm (25")	625mm (31")
	Max.travel hydraulic
	Table Speed infinitely variable hydraulic	50HZ, 5-23m/min, 60HZ, 5-28 m/min
	Max.Auto transverse travel	212mm (8½")	262mm (10½")	312mm (12½")
Cross Transverse Travel	Handwheel per revolution	5mm (0.2")
	Handwheel per graduation	0.05 mm (0.0012½")
	Auto transverse increment	1-10mm (0.04"" -0.4")
Wheelhead Vertical	Handwheel per revolution	1mm (0.05")
Wheelhead Vertical	Handwheel per graduation	0.01
Grinding Spindle Drive	Power Rating	1 HP		2 HP
Grinding Spindle Drive	Speed	50HZ, 2850 R.P.M., 60HZ, 3450 R.P.M.
Standard Grinding Wheel	Diameter	187mm (7")	203mm (8")
	Width	12mm (1½")	19mm
	Bore	31.78 (1½")
Hydraulic Motor	Power Rating	1HP x 6P 2HP x 6P
Longitudinal Feed Motor	Power Rating	1HP x 6P 2HP x 6P
Floor Space	Length x width x height Total space required	2030 x 1370 x 1670 mm (80" x 54" x 64")	2450 x 1500 x 1630 mm (96" x 61" x 64")	2500 x 1680 x 2500mm (98" x 66" x 98")
Packing Dimensions	L x W x H	1680 x 1270 x 1650mm (66" x 50" x 65")	1780 x 1320 x 1650mm (70" x 52" x 65")	1780 x 1400 x 1700mm (70" x 56" x 67")
